WASP

Description

The WASP set of products includes a block DownConverter board, block UpConverter board, and an optional low-noise amplifier (LNA) PreSelector.

DownConverter

WASP Block DownConverter board downconverts a 2 GHz wide frequency block in any portion of the 6 GHz to 26.5-GHz frequency range to a 500 MHz to 2500 MHz L-band intermediate frequency (IF). The low phase noise local-oscillator (LO) synthesizer has available LO output. Onboard reference conditioning is available for 10-MHz external reference with 10-MHz and 100-MHz reference outputs. The onboard power distribution accepts any input voltage between +8 VDC and +34 VDC, and the onboard microcontroller unit (MCU) provides external USB, serial peripheral interface (SPI), and I2C communication interfaces for communication and control.

UpConverter

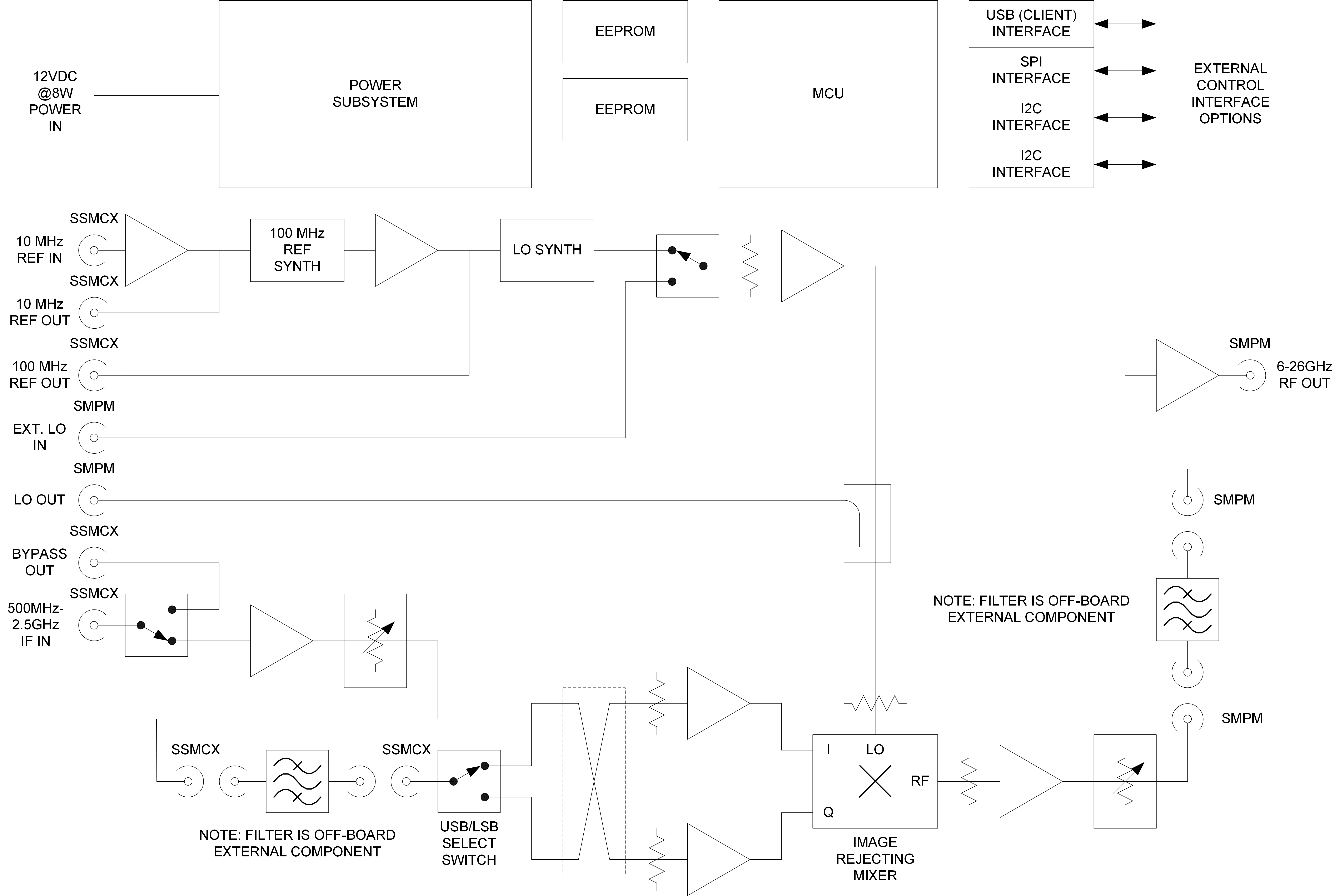

WASP Block UpConverter board upconverts a 500-MHz to 2500-MHz frequency block to any portion of the 6-GHz to 26.5-GHz frequency range. The low phase noise local-oscillator (LO) synthesizer has available LO output. Onboard reference conditioning is available for 10-MHz external reference with 10-MHz and 100-MHz reference outputs. Optional output buffer delivers up to +10 dBm to drive power amplifiers. Onboard power distribution accepts any input voltage between +8 VDC and +34 VDC, and the onboard microcontroller unit (MCU) provides external USB, SPI, and I2C communication interfaces for communication and control.

PreSelector

WASP LNA PreSelector is a low-noise amplifier with a switched filter bank. Covering the 6-GHz to 26.5-GHz range, the low-noise amplifier and switched filter bank can be inserted ahead of the WASP Block DownConverter input to improve image rejection and NF. The board is controlled by the MCU on the downconverter board through an I2C interface connection. The preselector board can also be used with the WASP Block Upconverter board output to reduce harmonics and spurious frequencies.

Features

DownConverter

  • High-performance, self-contained unit includes a low-phase noise LO synthesizer, reference input conditioning, high-efficiency power conditioning, and a powerful MCU for communications and control
  • Image rejecting mixer design has a digital attenuator on the output side of the mixer for adjustment of the conversion gain
  • Off-board connectors break the IF signal path to provide access for an external (off-board) IF filter
  • Unit can be used in conjunction with the WASP Block Upconverter to make phase-coherent frequency translation systems
  • Optimized to work with software-defined radios (SDRs)

UpConverter

  • High-performance, self-contained unit includes a low phase noise LO synthesizer, reference input conditioning, high-efficiency power conditioning, and a powerful MCU for communications and control
  • Image-rejecting mixer design has digital attenuators on the input and output side of the mixer to obtain maximum dynamic range for any configuration
  • Off-board connectors break the input and output signal paths to provide access for optional external filters
  • Unit can be used with the WASP Block DownConverter to make phase-coherent frequency translation systems

PreSelector

  • Covers 6-GHz to 26.5-GHz range for WASP Block Downconverter to improve image rejection and noise figure (NF)
  • Eight selectable signal paths
  • Low-noise amplifier and switched filter bank can be inserted ahead of the WASP Block Downconverter input to improve image rejection and NF
  • Board is controlled by the MCU on the downconverter board through an I2C interface connection
  • Preselector board can also be used with the WASP Block Upconverter board output to reduce harmonics and spurious frequencies

Order

Orders may be placed via e-mail, telephone, fax, or mail.

Commercial Price List available upon request.

E-mail: sales@rincon.com
Phone: 520-519-3131
Fax: 520-519-3120
Mail: Rincon Research Corporation
Attention: Sales
101 North Wilmot Road, Suite 101
Tucson, AZ 85711

WARNING: Commodities, including associated software, firmware, and technical data, offered for sale on this site are controlled for export by the U.S. Department of State under the International Traffic in Arms Regulations (ITAR) or by the Department of Commerce under the Export Administration Regulations (EAR). Purchaser is required by U.S. law to comply with these regulations. Export, re-export, and retransfer of these commodities by any means without the required licenses or other U.S. Government authorization is prohibited by U.S. law.

Technical Specifications

DownConverter

Input frequency range: 6 GHz to 26.5 GHz
LO tuning range: 8.5 GHz to 24 GHz in TBD steps
Input impedance: 50 Ohms
Input return loss: 16 dB typical
LO leakage: –67 dBm
Output IF: 1500 MHz ±1 GHz (500 MHz to 2500 MHz)
Output impedance: 50 Ohms
Return loss: 13 dB minimum
Power output: +4 dBm minimum
Noise figure: 10 dB typical, 12 dB maximum
Conversion gain: –0 dB to +30 dB in 0.5 dB steps
Amplitude flatness: ±1.5 dB
Image rejection: 30 dB typical, 20 dB minimum
Group delay: TBD (depends on off-board IF filter)
Phase noise: TBD
IP3: +25 dBm (third-order ≤50 dBc for two tones @ +0 dBm)
AM/PM conversion: TBD
Gain slope: TBD (adjusted by choice of onboard equalizer)
Power: ~8 W @ 7–36 VDC
Size: 80 mm x 106 mm x 12.8 mm

UpConverter

Input frequency range: 500 MHz to 2500 MHz (“standard” L band IF range)
LO tuning range: 8.5 GHz to 24 GHz
Input impedance: 50 Ohms
Input return loss: 20 dB typical
LO leakage: –8 dBm
Output RF: 6 GHz to 26.5 GHz
Output impedance: 50 Ohms
Output return loss: 15 dB minimum
Power output: –8 dBm (+10 dBm with optional post amplifier)
Conversion gain: –25 dB to +35 dB in 0.5 dB steps
Noise figure: TBD dB typical
Conversion gain: –0 dB to +30 dB in 0.5 dB steps
Image rejection: 30 dB typical, 20 dB minimum
Group delay: TBD (depends on off-board IF filter)
Phase noise: TBD
IP3: TBD dBm (third-order ≤50 dBc for two tones @ +0 dBm)
AM/PM conversion: TBD
Gain slope: TBD (adjusted by choice of onboard equalizer)
Power: ~8 W @ 7–36 VDC
Size: 80 mm x 106 mm x 12.8 mm

PreSelector

Through gain: +4.8 dB to +9.8 dB
Input noise figure: 2.5 dB
Input impedance: 50 Ohms
Input return loss: 10 dB typical
Output impedance: 50 Ohms
Output return loss: TBD
IP3 (third-order intercept point): +18 dBm
Power: 0.16 W @ 7–36 VDC
