Predator

Description

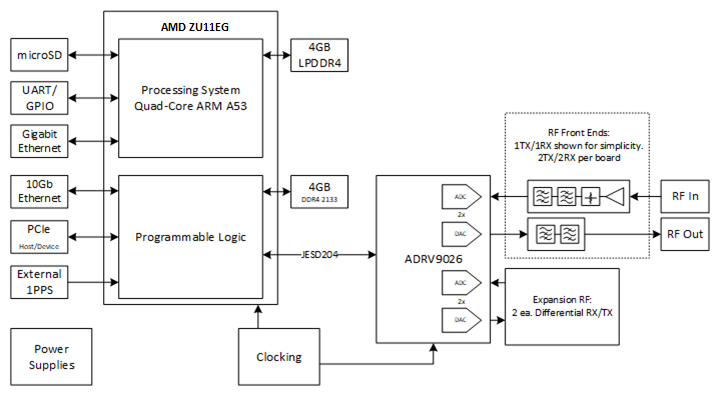

The Predator SDR is an all-in-one radio that leverages the latest in Analog Devices’ RF technology and AMD field-programmable gate array (FPGA) processing capabilities. The ADRV9026 paired with an XCZU11EG provide ample onboard processing capabilities while the many digital inputs/outputs (I/Os) allow offloading data for host-side processing. It can be merged with other computers creating the Picosaur.

Documentation

For additional information, download the Predator Product Brief

Order

PRD-01

Orders may be placed via e-mail, telephone, fax, or mail.

Commercial Price List available upon request.

E-mail: sales@rincon.com
Phone: 520-519-3131
Fax: 520-519-3120
Mail: Rincon Research Corporation
Attention: Sales
101 North Wilmot Road, Suite 101
Tucson, AZ 85711

WARNING: Commodities, including associated software, firmware, and technical data, offered for sale on this site are controlled for export by the U.S. Department of State under the International Traffic in Arms Regulations (ITAR) or by the Department of Commerce under the Export Administration Regulations (EAR). Purchaser is required by U.S. law to comply with these regulations. Export, re-export, and retransfer of these commodities by any means without the required licenses or other U.S. Government authorization is prohibited by U.S. law.

Technical Specifications

FPGA XCZU11EG-1FFVC1156E

4-GB RAM FPGA processor (PS)
4-GB RAM FPGA programmable logic (PL)

RF Transceiver ADRV9026

75 MHz to 6 GHz RX and TX
245.76-Msps maximum sample rate
Up to 200 MHz instantaneous bandwidth
Two independent tuners
4 RX channels — 2 SMPM RX with preselect filter, gain, attenuation; 2 RX channels over differential cable via ARF
4 TX channels — 2 SMPM TX with preselect filters; 2 TX channels over differential cable via ARF
JESD204c Digital Interface

Command and control

1 GbE RJ45

10 GbE

Cabled to external 4x SFP interface
Samtec ARF6-RA Slim Socket for ARC6

PCIe Gen3x4

Samtec Razor Beam LSHM high-speed terminal/socket strip
Either host or endpoint configurable

Expansion connector

20-pin Pico-Clasp header
8 GPIO (differential pair capable pins)
Dedicated I2C bus for external board control
SFP management controls for 10 GbE
Logic-level UART connection for GPS-NMEA messages

Fractional-N reference clock

Configurable external reference frequency
Internal reference operation
SMPM 50 Ω connector

1PPS

SMPM 50 Ω connector

FPGA JTAG, processor UART console

USB 2.0, Type-C connector

SWaP

Dimensions — 106 mm x 80 mm (4.2” x 3.15”)
Weight — 3 oz. (est)
Power — 70 Watts peak

Power supply

9–16VDC
50 A core supply
