Picosaur

Description

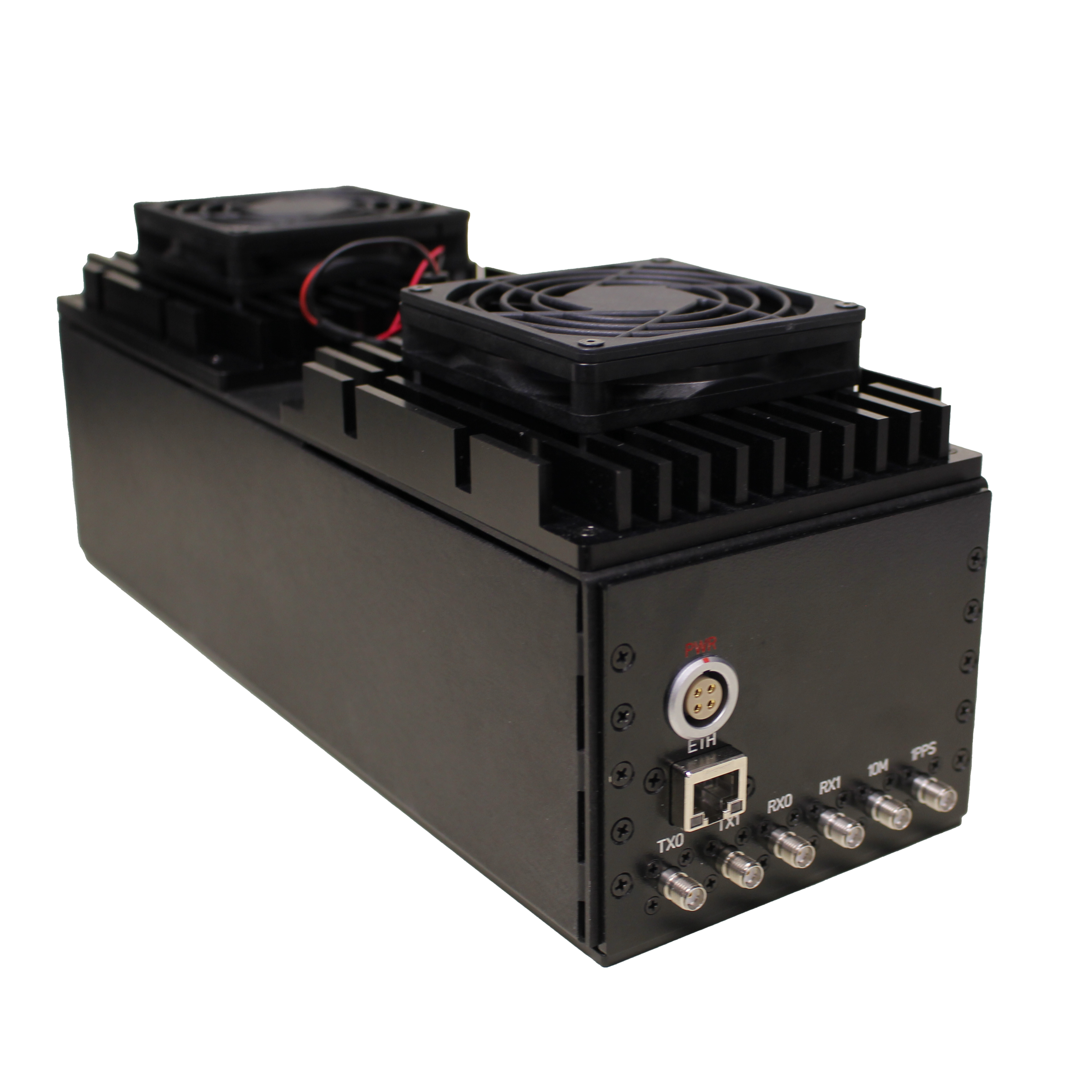

Rincon Research Corporation provided a demo of the Picosaur at CLOR24 event, sponsored by the Air Force, on 24 – 28 June 2024. The Picosaur is a promising platform on which to develop, prototype, and transition a tactical situational awareness application across Force Protection, Counter-Unmanned Aircraft Systems (UAS), and Blue UAS Operations. Combining a powerful small form factor software defined radio (SDR) with small form factor compute resources in the same housing enables ease of deployment, portability, and potential to camouflage with surroundings.

Documentation

For additional information, download the Picosaur Product Brief

Order

Orders may be placed via e-mail, telephone, fax, or mail.

Commercial Price List available upon request.

E-mail: sales@rincon.com
Phone: 520-519-3131
Fax: 520-519-3120
Mail: Rincon Research Corporation
Attention: Sales
101 North Wilmot Road, Suite 101
Tucson, AZ 85711

WARNING: Commodities, including associated software, firmware, and technical data, offered for sale on this site are controlled for export by the U.S. Department of State under the International Traffic in Arms Regulations (ITAR) or by the Department of Commerce under the Export Administration Regulations (EAR). Purchaser is required by U.S. law to comply with these regulations. Export, re-export, and retransfer of these commodities by any means without the required licenses or other U.S. Government authorization is prohibited by U.S. law.

Technical Specifications

Channels

2x RX/TX channels up to 200MHz IBW

Timing Signals

10MHz
1PPS

Command/Control

1 GbE RJ45

Dimensions

1/2U 12.25” x 4.5” x 4.13”
3/4U 19.0” x 4.5” x 4.13”

GLOBAL AMERICAN COMMELL® LP-1797 X86 SPECS

  • Intel® Tiger Lake UP3 Processor
  • LP-1797 with i7-1185G7E
  • 32GB LPDDR4
  • 10GbE High-speed Interface

PREDATOR SDR SPECS

  • FPGA XCZU11EG-1FFVC1156E
    • 4-GB RAM FPGA processor (PS)
    • 4-GB RAM FPGA programmable logic (PL)
  • ADRV9026 RF Transceiver
    • 75 MHz to 6 GHz RX and TX
    • 245.76-Msps maximum sample rate
    • Two independent tuners
  • Up to 4x 10GbE High-speed Interface
