Scorpion
Description

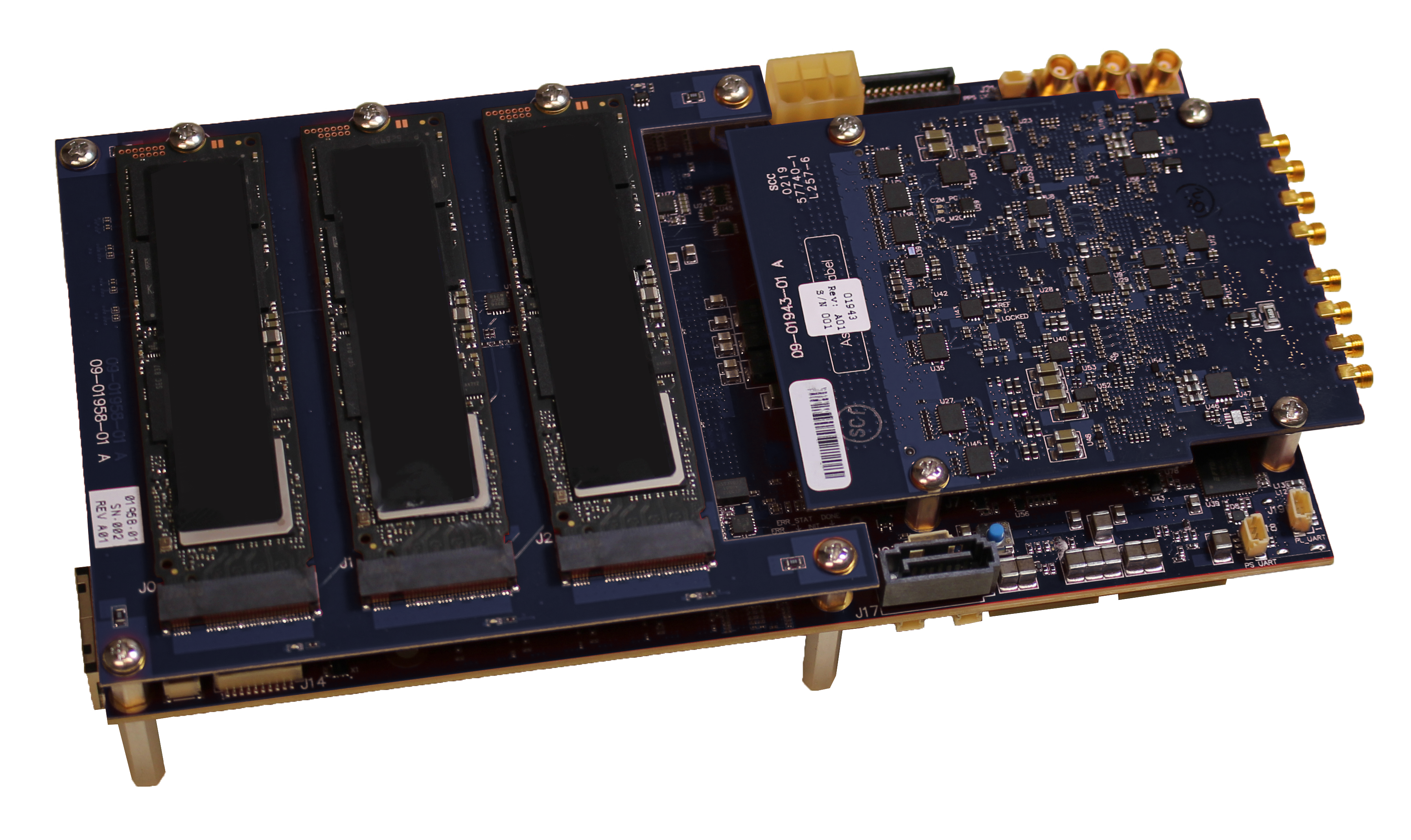

Digitization and processing with more channels, more bandwidth, and more samples per second. Scorpion is a flexible DSP system, designed to operate in multiple configurations and environments, including rack-mounted chassis, portable systems, and bench-top enclosures. Scorpion is built around the Xilinx Ultrascale+ Zynq MPSoC with an embedded quad-core Cortex-A53 ARM processor. Depending on daughter card configurations, Scorpion can record 4.8 gigabytes per second (GBPS), which is analogous to recording the content of a classic DVD every second.
Scorpion has four optional daughter cards to provide multiple ADAC configurations/capabilities. More information on each can be found under Documentation.
Features
- FMC+ connector for next-generation RF front-ends

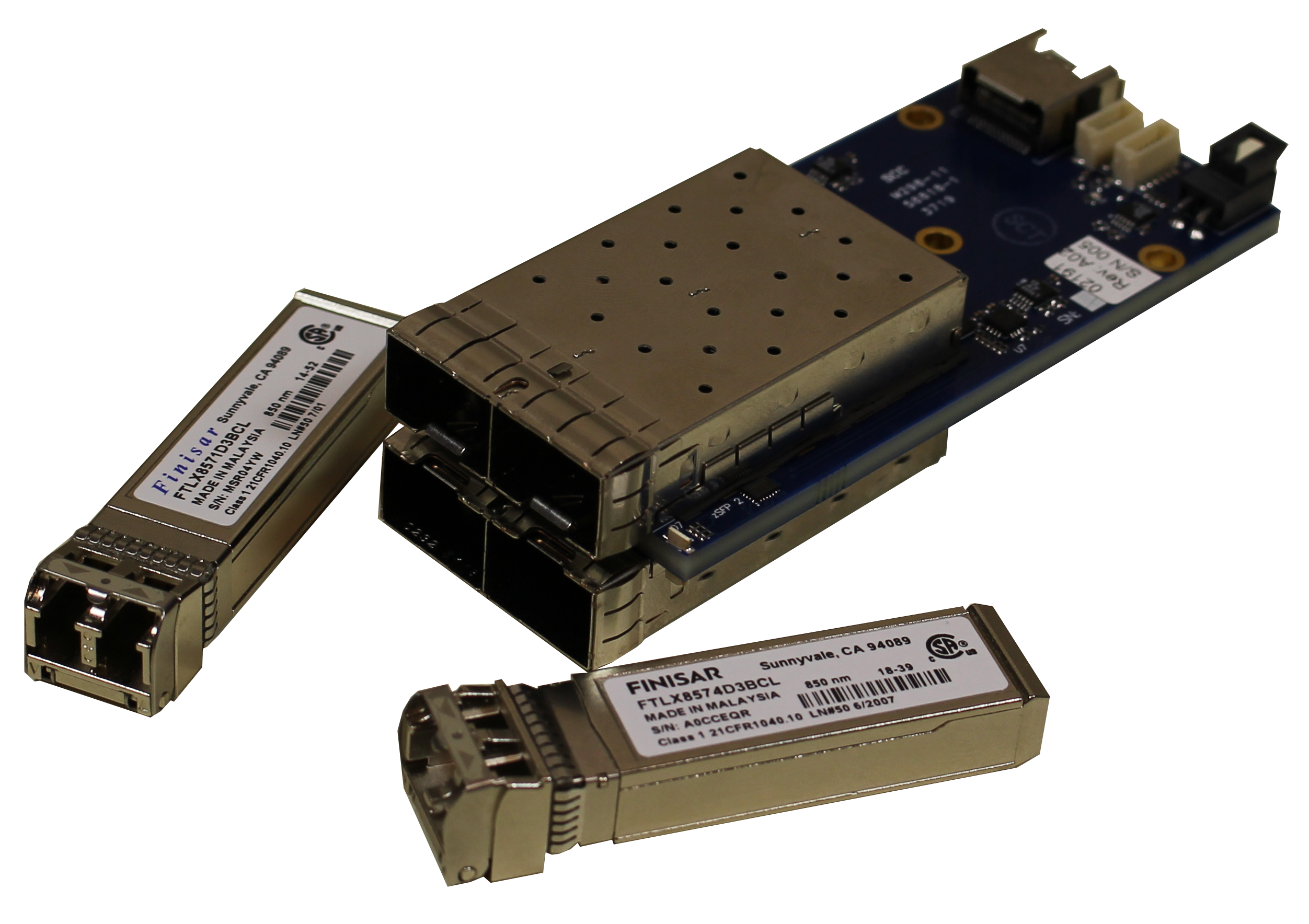

- 100 Gb Ethernet for high-speed network integration
- 4x4 lane PCIe custom interface for attaching NVMe SSDs or other high-speed devices
- ARM Ultrascale+ Zynq MPSoC: enables Linux-managed display port, USB 3.0, SATA, and 1 GbE
- 10 GB FPGA attached DDR4 for signal processing and data buffering
Documentation
Download the Scorpion Product Brief for an overview of the Scorpion’s features.
Order
SCORP-ZU11EG-1E-01
Please contact us if you are interested in customizing a product to your specific requirements.
Orders may be placed via e-mail, telephone, fax, or mail.
Commercial Price List available upon request.
E-mail: sales@rincon.com
Phone: 520-519-3131
Fax: 520-519-3120
Mail: Rincon Research Corporation
Attention: Sales
101 North Wilmot Road, Suite 101
Tucson, AZ 85711
WARNING: Commodities, including associated software, firmware, and technical data, offered for sale on this site are controlled for export by the U.S. Department of State under the International Traffic in Arms Regulations (ITAR) or by the Department of Commerce under the Export Administration Regulations (EAR). Purchaser is required by U.S. law to comply with these regulations. Export, re-export, and retransfer of these commodities by any means without the required licenses or other U.S. Government authorization is prohibited by U.S. law.
Technical Specifications
System-on-Chip
ARM Zynq UltraScale+ XCZU11EG-1F1517E MPSoC
ARM Core Processors
4 GB DDR4 attached
Storage
MicroSD card and QSPI NAND flash
Timing Inputs
NMEA
IRIG
10MHz
USB
3.0/2.0 (USB-C)
Input Voltage
9V - 30V
